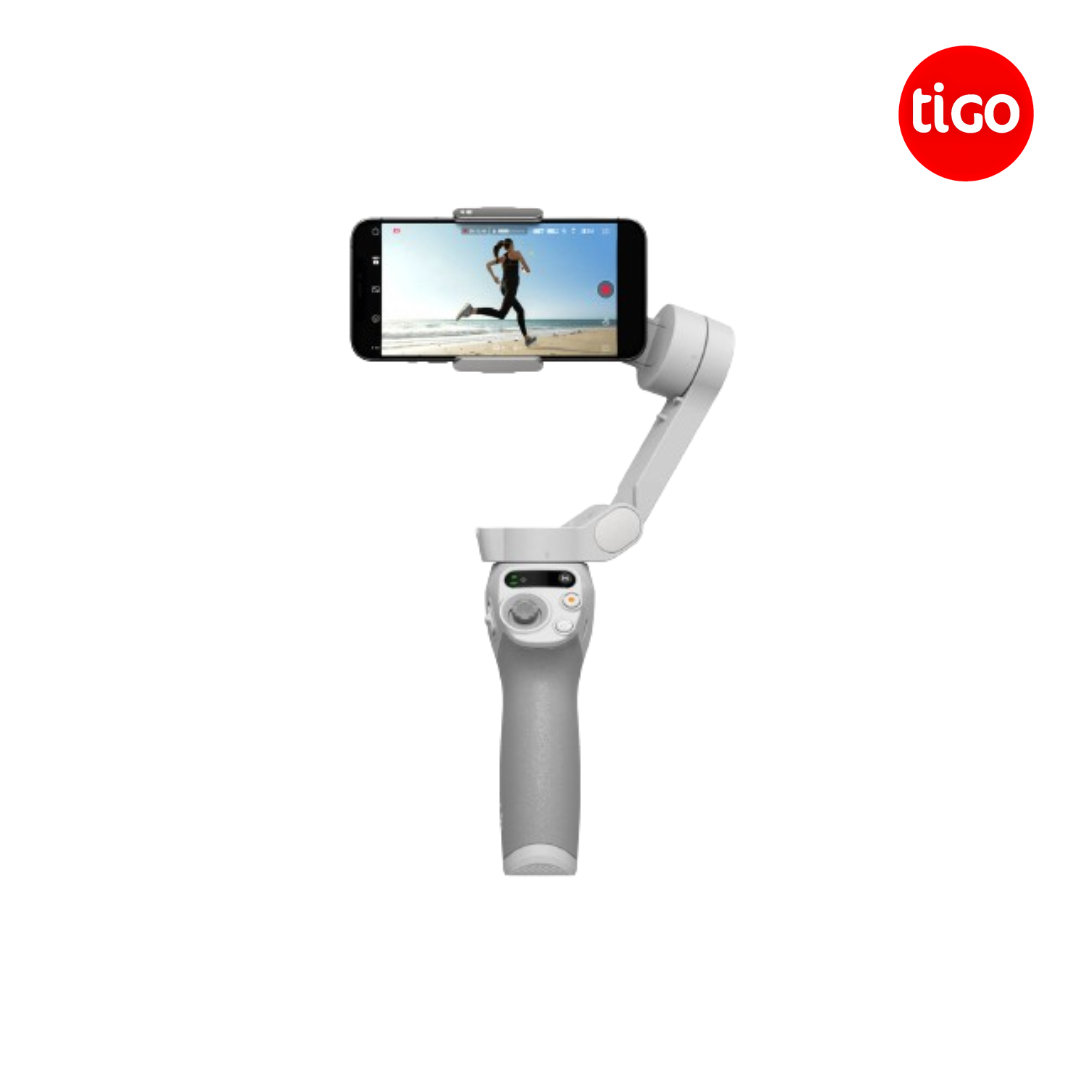

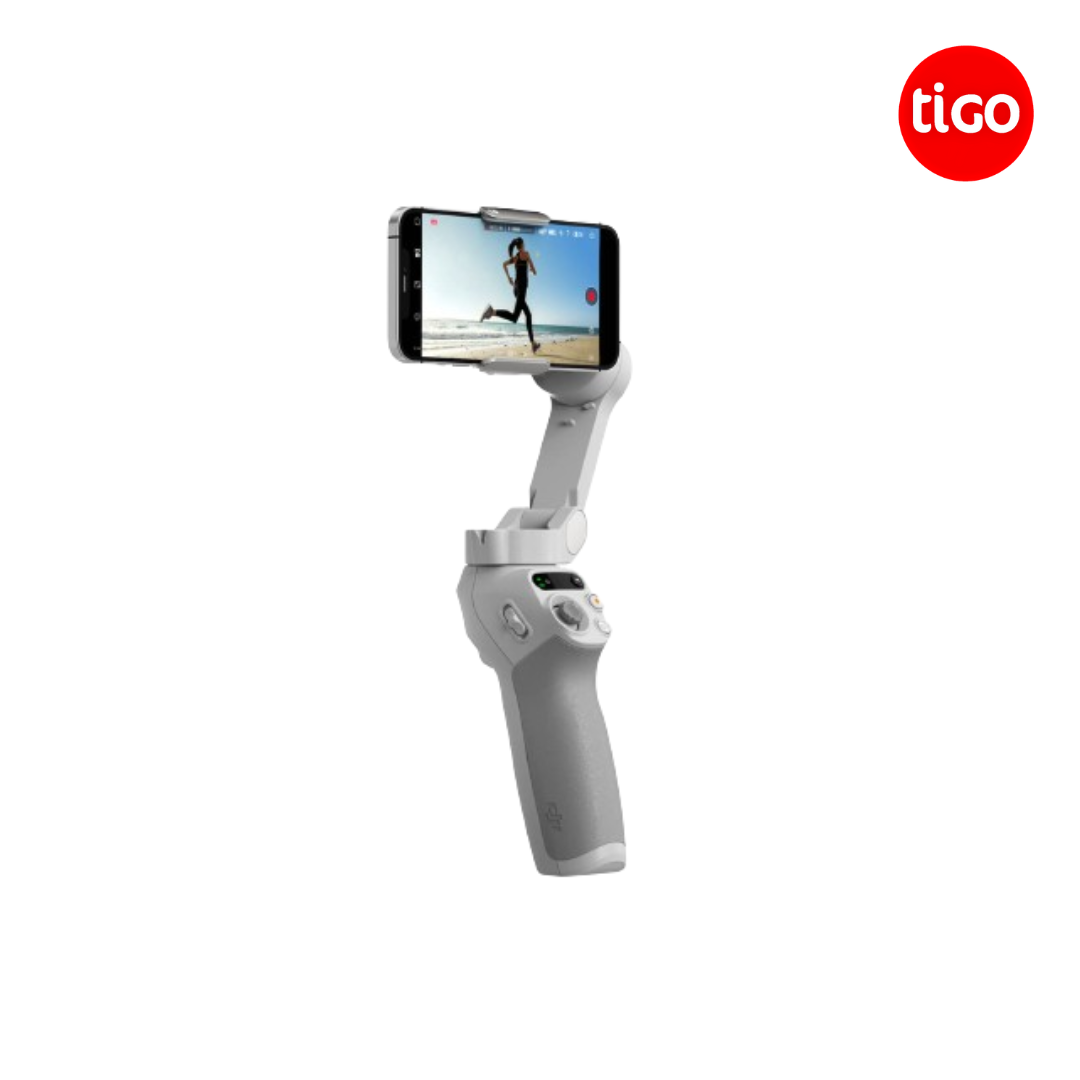

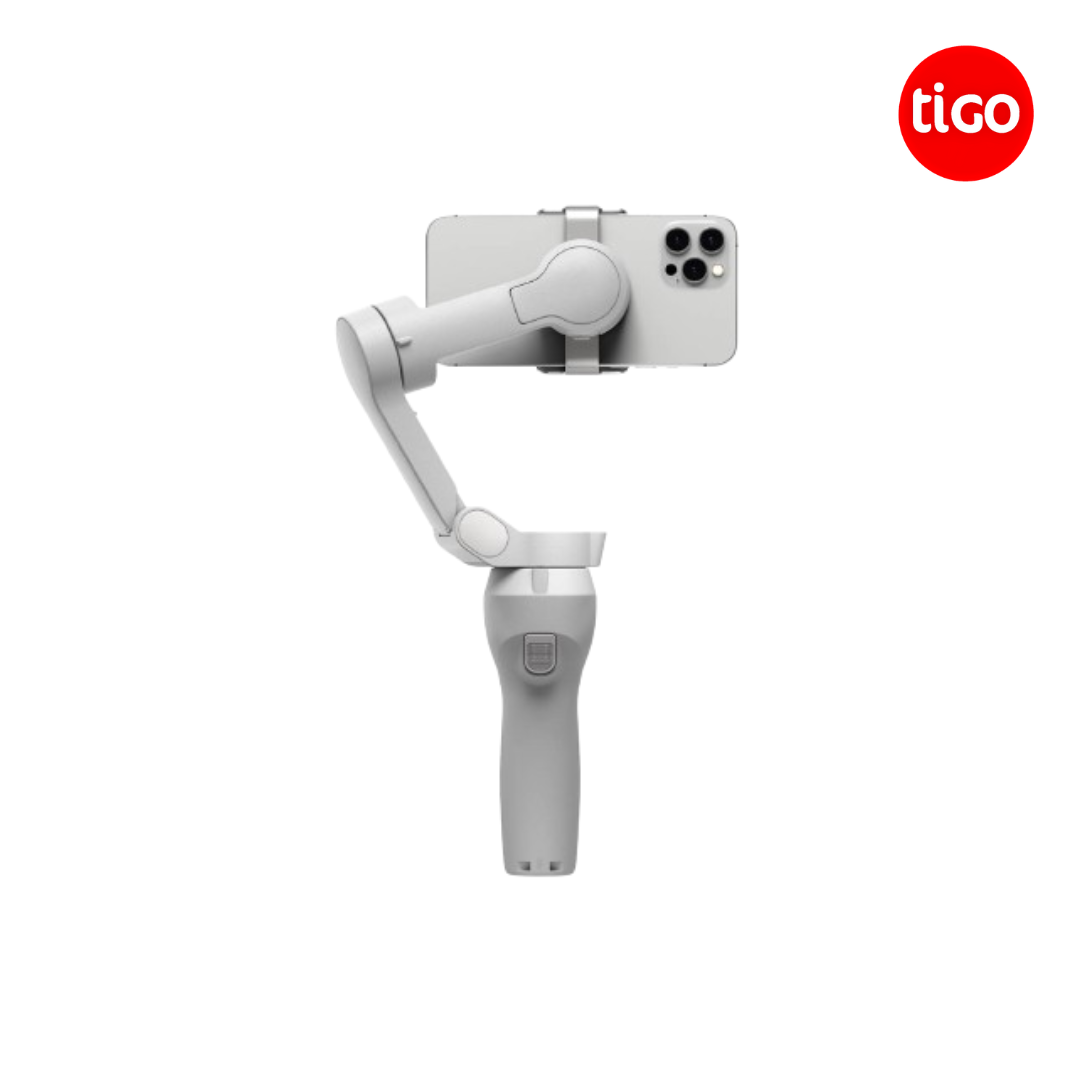

DJI Osmo Mobile SE

DJI Osmo Mobile SE Specifications

General

• Dimensions:
  • Unfolded: 262.5×119.5×104 mm (L×W×H)
  • Folded: 167×108.5×46.5 mm (L×W×H)
• Weight:
  • Gimbal: Approx. 352 g
  • Magnetic Phone Clamp: Approx. 31 g
• Compatible Phone Weight: 170-290 g
• Compatible Phone Thickness: 6.9-10 mm
• Compatible Phone Width: 67-84 mm

Battery

• Type: 18650 Li-ion
• Capacity: 2600 mAh
• Energy: 9.36 Wh
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 0° to 40° C (32° to 104° F)
• Operating Time: Approx. 8 hours (measured under ideal conditions with the gimbal fully balanced)
• Charging Time: Approx. 2 hours and 12 minutes (measured with a 10W Type-C charger)
• Gimbal Charging Port: USB-C

Gimbal

• Mechanical Range:
  • Pan: -161.2° to 171.95°
  • Roll: -136.7° to 198°
  • Tilt: -106.54° to 235.5°
• Max Control Speed: 120°/s
• Wireless Mode:
  • Model: Bluetooth 5.1

Software

• App: DJI Mimo

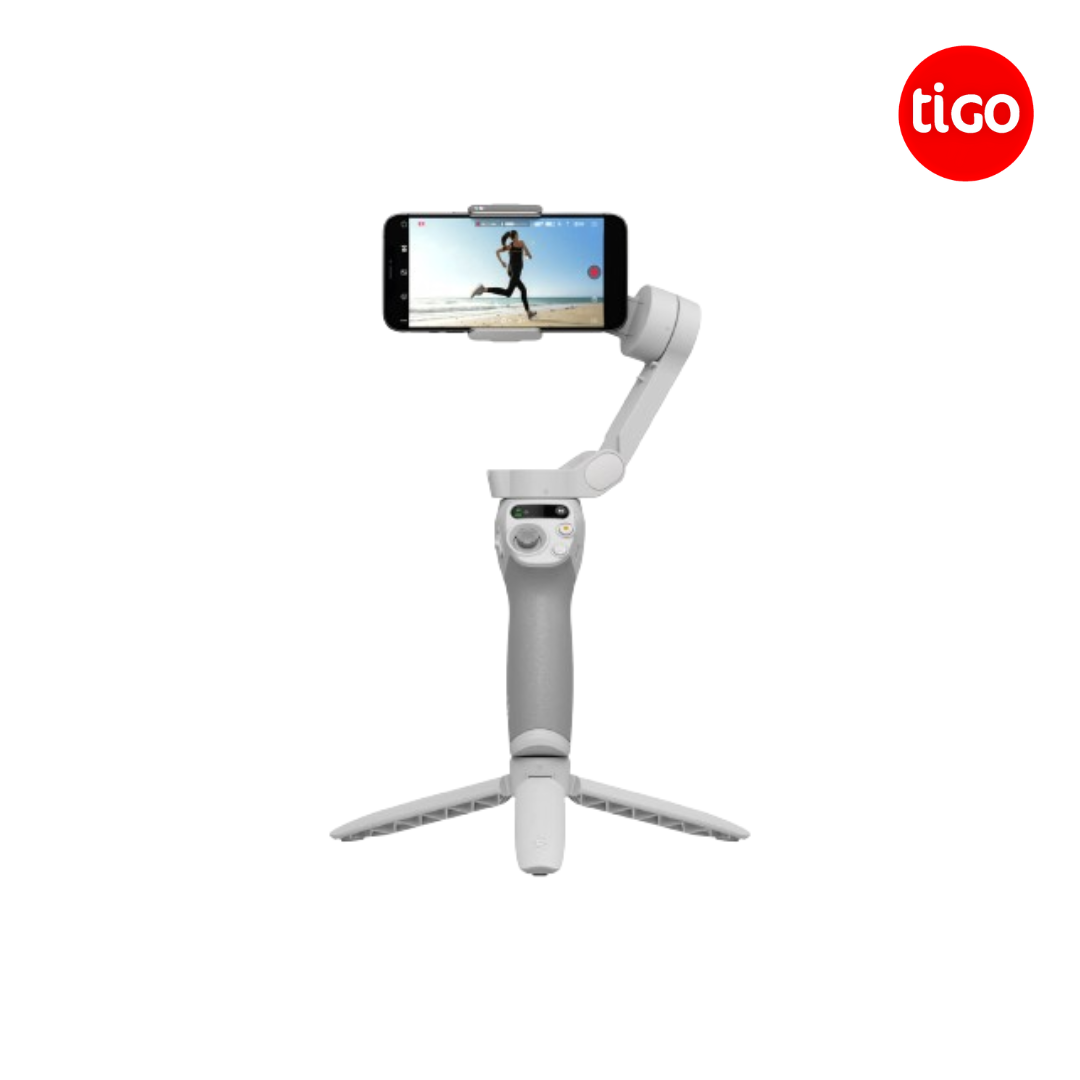

Grip Tripod

• Dimensions:
  • Length: 138 mm
  • Diameter: 32 mm
• Weight: Approx. 72 g
