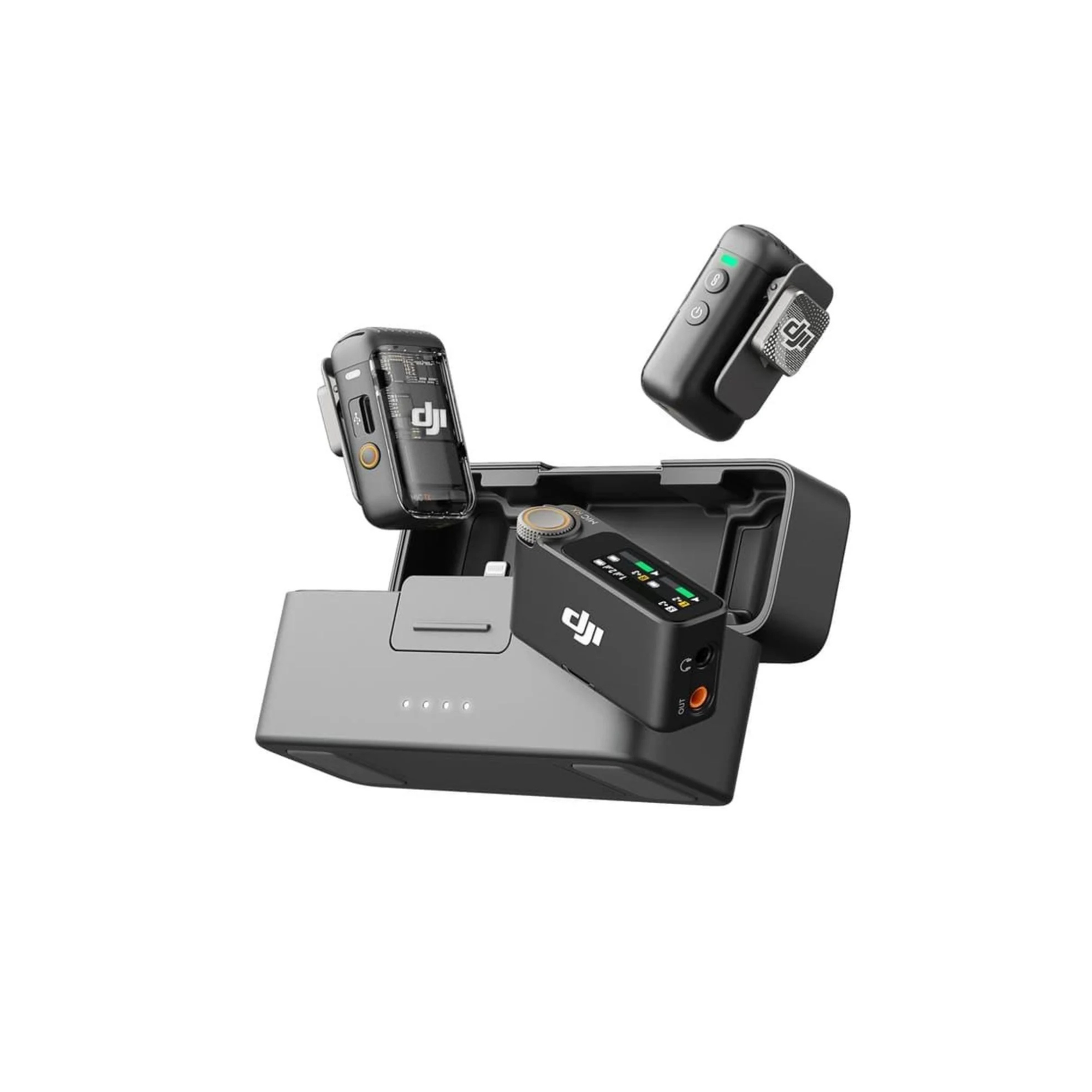

DJI MIC 2

DJI MIC 2

DJI Mic 2 Transmitter

• Model: DMT02
• Dimensions: 46.06×30.96×21.83 mm (L×W×H)
• Weight: 28 g
• Wireless Mode: GFSK 1 Mbps and 2 Mbps
• Equivalent Isotropic Radiated Power (EIRP): <20 dBm
• Wireless Mode Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: BR/EDR
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Transmitter Power (EIRP): <20 dBm
• Battery Type: Li-ion
• Battery Capacity: 360 mAh
• Battery Energy: 1.39 Wh
• Battery Voltage: 3.87 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: 70 minutes
• Operating Time: 6 hours (tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS))

DJI Mic 2 Receiver

• Model: DMR02
• Dimensions: 54.20×28.36×22.49 mm (L×W×H)
• Weight: 28 g
• Wireless Mode: GFSK 1 Mbps and 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): <20 dBm
• Operating Frequency: 2.400-2.4835 GHz
• Battery Type: Li-ion
• Battery Capacity: 360 mAh
• Battery Energy: 1.39 Wh
• Battery Voltage: 3.87 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: 70 minutes
• Operating Time: 6 hours (tested when both TXs are connected to the RX without recording backup clips internally, and the RX is connected to a camera via Camera Audio Cable (3.5mm TRS))

DJI Mic 2 Charging Case

• Model: DMC02
• Dimensions: 116×41.5×59.72 mm (L×W×H)
• Weight: 200 g
• Battery Type: 18650 Li-ion
• Battery Capacity: 3250 mAh
• Battery Energy: 11.7 Wh
• Battery Voltage: 3.6 V
• Charging Specification: 5 V, 1.5-3 A
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Time: 2 hours and 40 minutes
• Charging Cycles for TX and RX: Approx. two cycles when charging two TXs and one RX at the same time

General

• Polar Pattern: Omnidirectional
• Frequency Response:
  • Low Cut Off: 50 Hz - 20 kHz
  • Low Cut On: 100 Hz - 20 kHz
• Max Sound Pressure Level (SPL): 120 dB SPL
• Max Input Level (3.5 mm): -6 dBV (THD < 0.1%)
• Equivalent Noise: 21 dBA
• Monitor Interface Output Power: Max Output 12 mW@1 kHz, 32 Ω
• Max Transmission Distance: 250 m (FCC), 160 m (CE)
